Gray flat cable (UL20025)
Features
- This cable insulation using soft PVC materials, resulting in a high degree of flexibility. 7 tin conductor using copper wire woven from strangulation, cleared fields, connect the two ends of high-density connectors, you can optimize the structure of the device can reduce the welding equipment in the internal space.
- This product is environmentally friendly. The insulator does not contain
specific bromide-based fire retardant (PBDE or PBB) or the heavy metals Pb,
Cr6+, Cd and Hg. It also conforms to the RoHS (restriction of the use of
certain hazardous substances in electrical and electronic equipment)
regulations.
Applications
This product can be used in computers and peripherals, communications equipment, office equipment, numerical control equipment, internal wiring, in particular, the ideal high-density wiring, the fixed-line optimization in-house.
Characteristics
| Conductor resistance Ω/km |
206(MAX) |
Characteristic impedance Ω |
98(STD) |
| Insulation resistance W/km (20degrees) |
10(MIN) |
Propagation delay ns/m |
5.4(STD) |
| Withstand voltage Vrms/min |
1500 |
Near-end crosstalk % |
3.4(STD) |
| Capacitance pF/m |
61(STD) |
Flame retardant characteristics |
VW-1 |
Method of expressing product name
| FLEX-B ( )-19/0.08 20050 |
All gray apart from red side mark |

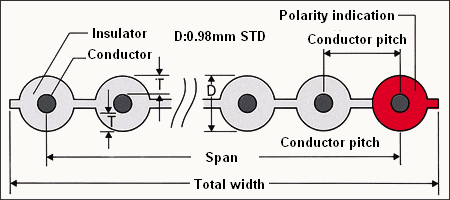

Configuration table
| Number of cores |
Conductor |
Insulator |
Span mm |
Total Width mm |
Wire pitch mm |
Sandard length |
| 8 |
19/0.08
(AWG28) |
SoftPVC |
8.89 |
10.2 |
1.27 |
61m/reel
(200feet) |
| 10 |
11.43 |
12.7 |
| 14 |
16.51 |
17.8 |
| 16 |
19.05 |
20.3 |
| 20 |
24.13 |
25.4 |
| 24 |
29.21 |
30.5 |
| 25 |
30.48 |
31.8 |
| 26 |
31.75 |
33.0 |
| 30 |
36.83 |
38.1 |
| 34 |
41.91 |
43.2 |
| 36 |
44.45 |
45.7 |
| 37 |
45.72 |
47.0 |
| 40 |
49.53 |
50.8 |
| 50 |
62.23 |
63.5 |
| 60 |
74.93 |
76.2 |
| 64 |
80.01 |
81.3 |
| | |
