Patterned flat cable (UL4539)
Features
- This cable insulation using soft PVC materials, resulting in a high degree of flexibility. 7 tin conductor using copper wire woven from strangulation, cleared fields, connect the two ends of high-density connectors, you can optimize the structure of the device can reduce the welding equipment in the internal space.
- This product is environmentally friendly. The insulator does not contain
specific bromide-based fire retardant (PBDE or PBB) or the heavy metals Pb,
Cr6+, Cd and Hg. It also conforms to the RoHS (restriction of the use of
certain hazardous substances in electrical and electronic equipment)
regulations.
Applications
This product can be used in computers and peripherals, communications equipment, office equipment, numerical control equipment, internal wiring, in particular, the ideal high-density wiring, the fixed-line optimization in-house.
Characteristics
| Conductor resistance Ω/km (20degrees) |
222 max |
Characteristic impedance Ω |
Standard 106 |
| Insulation resistance MΩ/-km (20degrees) |
100 min |
Propagation delay time difference ns/m |
Standard5.0 |
| Withstand voltage Vrms/min |
2000 |
Near-end crosstalk % |
Standard 5.0 |
| Capacitance pF/m |
Standard 52 |
Flame retardant characteristics |
VW-1 |
Item name, classification, and color of core wire
| Item Name |
Classification |
Color of core wire |
| FLEX-SN ( )-7/0.127 7030 4539 |
Sudare type |
Red - Gray - Gray - Gray - Green …
1st core wire = Red,
5nth core wire = Green, Others = Gray
According to the center line of color can be customized with a free |

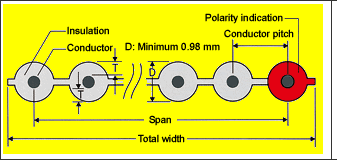

Type configuration table
| Number of core wires |
Conductor |
Insulator |
Span mm |
Total width mm |
Wire pitch mm |
Standard length |
| 10 |
AWG28
(7/0.127) |
Flame retardant polyolefin |
11.43 |
12.7 |
1.27 |
1reel 61m
(200feet) |
| 14 |
16.51 |
17.8 |
| 16 |
19.05 |
20.3 |
| 20 |
24.13 |
25.4 |
| 24 |
29.21 |
30.5 |
| 26 |
31.75 |
33.0 |
| 30 |
36.83 |
38.1 |
| 34 |
41.91 |
43.2 |
| 40 |
49.53 |
50.8 |
| 50 |
62.23 |
63.5 |
| 60 |
74.93 |
76.2 |
| 64 |
80.01 |
81.3 |
| | |
