Corlor flat cable(UL2651-1)

Features

This cable insulation using soft PVC materials, resulting in a high degree of flexibility. 7 tin conductor using copper wire woven from strangulation, cleared fields, connect the two ends of high-density connectors, you can optimize the structure of the device can reduce the welding equipment in the internal space.
This product is environmentally friendly. The insulator does not contain specific bromide-based fire retardant (PBDE or PBB) or the heavy metals Pb, Cr6+, Cd and Hg. It also conforms to the RoHS (restriction of the use of certain hazardous substances in electrical and electronic equipment) regulations.

Applications

This product can be used in computers and peripherals, communications equipment, office equipment, numerical control equipment, internal wiring, in particular, the ideal high-density wiring, the fixed-line optimization in-house.

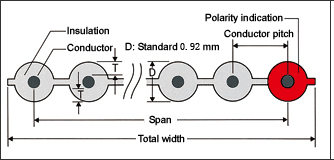

Shape

Characteristics

Conductor resistance Ω/km	222 (MAX)	Characteristic impedance Ω	80 (STD)
Insulation resistance -km	10(MIN)	Propagation delay ns/m	5.6 (STD)
Withstand voltage Vrms/min	2000(MIN)	Near-end crosstalk %	6.0 (STD)
Capacitance pF/m	76 (STD)	Flame resistance characteristics	VW-1

Item name, classification, and color of core wire

FLEX-S4 ( )-7/0.127 2651-1	Brown - Red - Orange - Yellow - Green - Blue - Purple - Gray - White - Black … (Repeated hereafter.)

Type configuration table

Number of cores	Conductor	Insulation	span mm	Total width mm	Conductor pitch mm	Standard length
10	7/0.127 (AWG28)	Elastic PVC	9.0	10.0	1.0	61m/reel (200feet)
12			11	12
14			13	14
16			15	16
20			19	20
24			23	24
26			25	26
30			29	30
34			33	34
36			35	36
40			39	40
44			43	44
50			49	50
60			59	60
64			63	64
